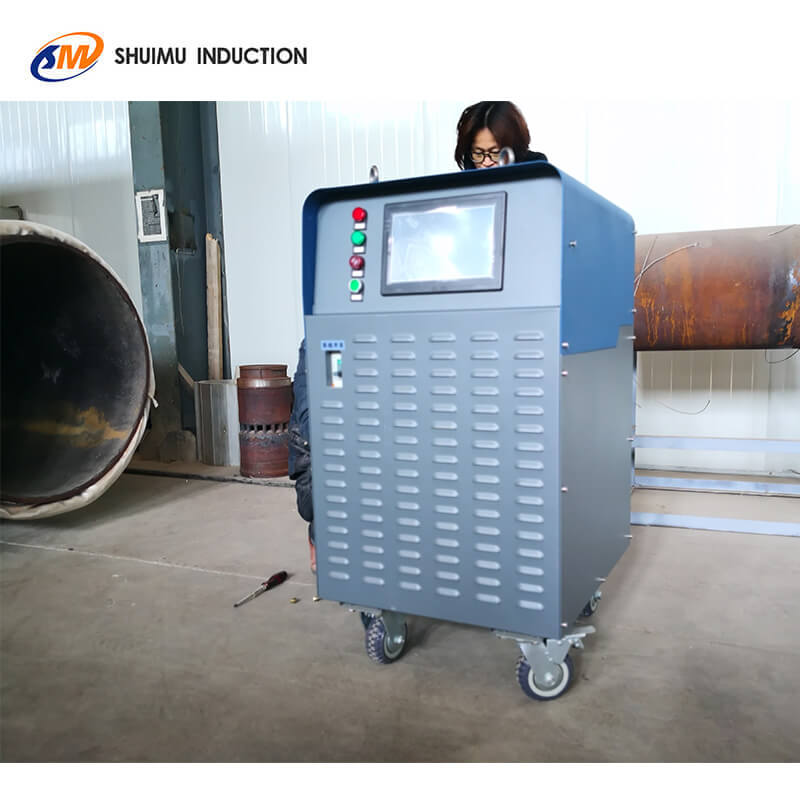

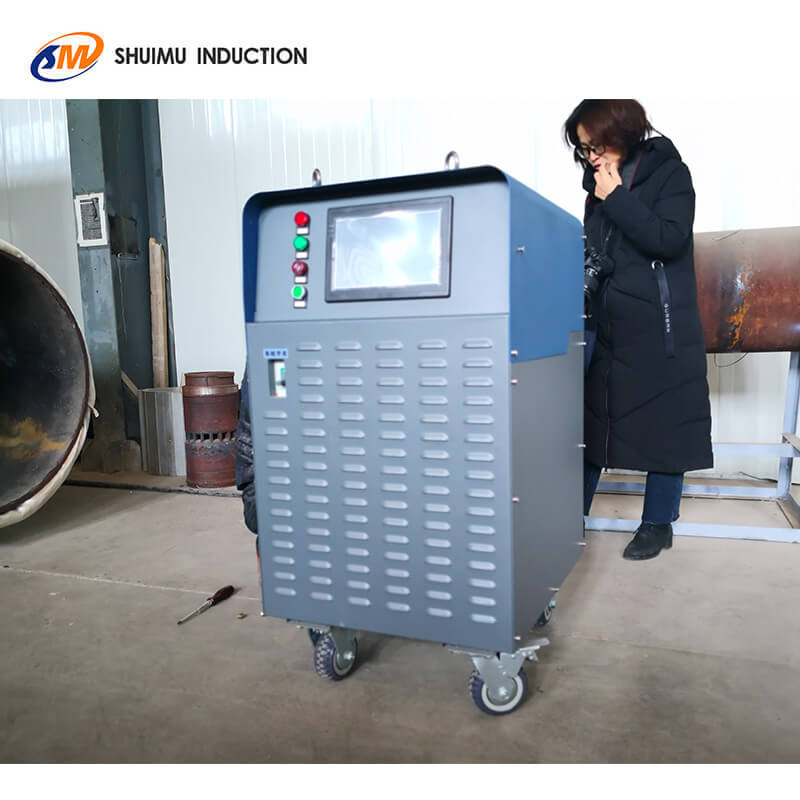

P91 P92 pipe weld preheating & PWHT machine SMD-900 is designed for power plant pipe pwht with temperature ≤900℃. The induction heater is air cooling with PID & PLC control. The induction cable is water cooling induction cable. Can set the preheating time, preheating speed, soaking temperature, soaking time, cooling temperature and cooling speed. It is widely used for weld preheating, pwht, postweld heating treatment, stress reliving and so on.
The SMD900 - 80KW Machine Heating Capacity: P91, P 92 pipe PWHT.
The using fields involve Pipeline construction, bridge construction, boiler and pressure vessel manufacturing, shipbuilding and offshore platform construction, anti corrosion of heat shrinkable pipe, motor manufacturing and maintenance, shaft sleeve removing, ect.
Comparing with the ceramic pads heating system, this Induction heating is the metal in the magnetic field heating itself. Which is direct heating with 3-8 times rapider and 20-80% energy saving than the ceramic heating pads. Especially for Rapid heating like motor casing and shaft thermal assembly & disassembly, the induction heating will win the heating speed.
CONTACT US NOW!
Provide you with free samples and technical advice at your convenience.
Leave your email and phone no. Here right now.
3 x 380V, 50/60HZ
(340 ~ 440 ) V, 3 Phase, 50/60HZ
3 ~15 KHZ
Max heating temperature 900℃
< 100℃/ Min
Yes, Temperature control system build in the machine
PID , DSP, PLC, Touch Screen control system
SM Induction / Made in China
950 x 750 x 1100 mm
PWHT Heating Capacity For Pipe
50 ~600 mm
10 ~50 mm
Max Heating Temperature
0 - 900 C
Plate weld heating, Pipe weld heating, Shipbuilding weld heating, Shrink fitting, Heating removing, Field Joint coating preheating , PWHT postweld heating treatment, Stres reliving and so on.
