IGBT Induction melting furnace
MYF induction melting furnace (middle frequency 1-20KHz) for ferrous and non-ferrous Metal melting. Which covers MF Series ( Manual tilting system) and BF Series ( Electric motor tilting system). SiC crucible for Steel, Iron ferrous Metal melting. Graphite Crucible is for non-ferrous Metal Gold, Silver, Copper, Al, Zinc, Tin, Lead melting. The power size ranges 15-110KW and 1000-1600CM³crucible size.
WF Series melting furnace is designed for Silver, Copper, Al, Zinc, Tin, Lead melting and casting. The power size range 60-300KW and 100-1000kg copper capacity or equivalent.

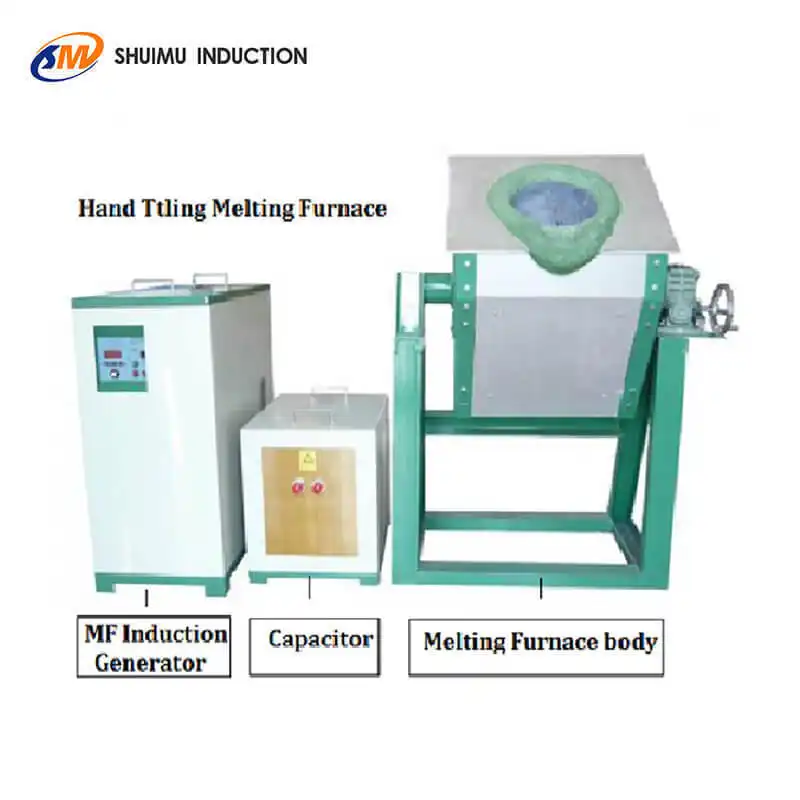

MF Melting Furnace-Manual Tilting
BF Melting Furnace-Electric Motor Tilting
WF Melting Furnace for Non-ferrous Metal Melting
PRODUCT INTRODUCTION
IGBT small induction melting furnace for steel, copper, brass, aluminum, gold melting, The melting power is from 15KW ~ 160KW. The melting capacity is from 2 kg ~ 150 kg.
1. MF melting furnace can be used for the melting of steel, stainless steel, brass,cooper, gold and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quantity casting parts.
3. Wide frequency range from 1KHZ to 20 KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4. Compared with SCR medium frequency furnace, it can be energy at least 20% and up.
5. Small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the colleges and researching companies to used.
6. 24 hours non-stop melting ability.
7. It’s easy to change melting furnace to different capacity, different materials,different way of pouring out, to suitable for all kinds of requirements.
◆ Main application: Aluminum melting furnace.
◆ Other melting metal: Tin melting furnace, zinc melting furnace, lead melting furnace, copper melting furnace, steel melting, gold melting and so on.
PRODUCT ADVANTAGE
PRODUCT PARAMETERS
Technical Data | ||||
Model | MYF-15KW | MYF -25KW | MYF -35KW | MYF -50KW |
Input Voltage | 3 x 380V, 50/60HZ | |||
Input Current | 20A | 30A | 50A | 65A |
Ouptut Power | 1~15KW | 1~25KW | 1 ~ 35KW | 1~50KW |
Output Frequency | 1~20KHZ | |||
Cooling Water | 0.2 Mpa 4 ~ 8 L/Min | |||
Extend Cable | 1 ~ 5 meters | |||
Aluminum Melting Capacity | 5~10 kg | 10~30 kg | 20~40 kg | 30~60 kg |
Steel Melting Capacity | 1~2 kg | 1~5 kg | 5~15 kg | 10~20 kg |
Copper Brass Melting Capacity | 5~10 kg | 10~30 kg | 20~40 kg | 30~60 kg |
Weight | 150 kg | 170kg | 200 kg | 230 kg |
Model | MYF -70KW | MYF -90KW | MYF 110KW | MYF 160KW |
Input Voltage | 3 x 380V, 50/60HZ | |||
Input Current | 100A | 130A | 160A | 240A |
Ouptut Power | 1~70KW | 1~90KW | 1 ~ 110KW | 1~160KW |
Output Frequency | 1~20KHZ | |||
Cooling Water | 0.2 Mpa 6 ~ 10 L/Min | |||
Extend Cable | 1 ~ 5 meters | |||
Aluminum Melting Capacity | 30~80 kg | 40~100 kg | 80~150 kg | 100~200 kg |
Steel Melting Capacity | 20-40 kg | 30-60 kg | 40~80 kg | 50~100 kg |
Copper Brass Melting Capacity | 30~80 kg | 40~100 kg | 80~150 kg | 100~200 kg |
Weight | 250kg | 300kg | 350 kg | 400 kg |
