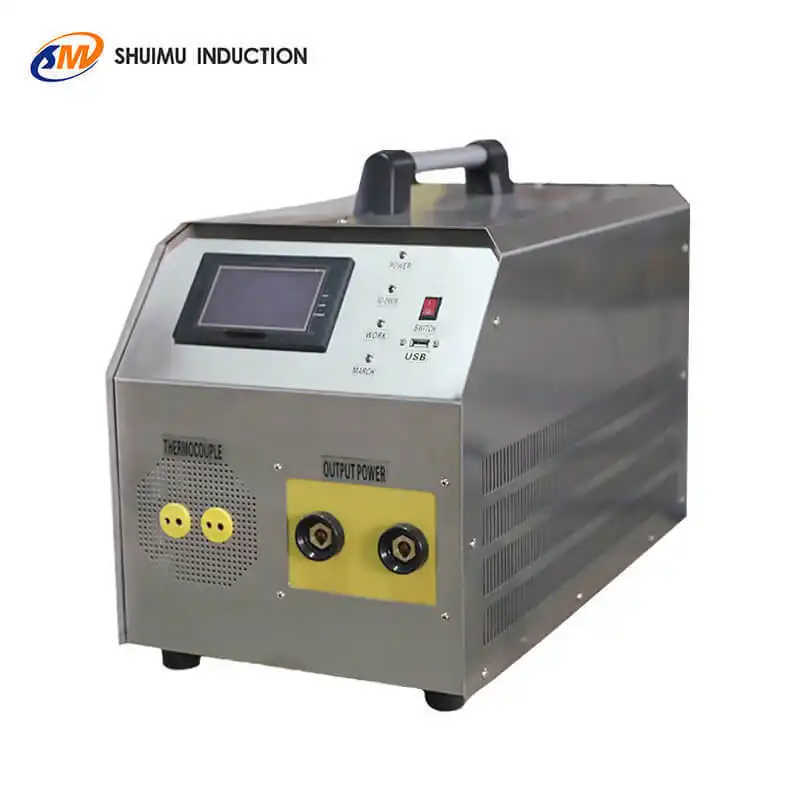

MYD Proheat300 Portable Induction heater for Motor Casing Thermal Assembly|Shaft Coupling Thermal Assembly
MYD Proheat300 Portable Induction heater data:
Model | MYD-20KW | MYD-30KW | MYD-40KW |
Input voltage | 3*380V, 50/60Hz | 3*380V, 50/60Hz | 3*380V, 50/60Hz |
Input Current | 1~30A | 1~45A | 1~60A |
Output Current | 0~80A | 0~100A | 0~150A |
Output Power | 1~30KW | 1~30KW | 1~40KW |
Output Frequency | 2~15KHZ | 2~15KHZ | 2~15KHZ |
Thermocouple | K type | K type | K type |
Temperature control | Build in | Build in | Build in |
Heating Temperature | Max 300℃ | Max 300℃ | Max 300℃ |
Pipeline Diameter or equivalent | 50~1000 mm | 50~1000 mm | 50~1500 mm |
Heater Size | 650x400x600 mm | 650x400x600 mm | 650x400x600 mm |
Weight | 23 kg | 26 kg | 29 kg |
Induction Heating coil | |||
Length | 40-50 M | 40-50 M | 40-50 M |
Diameter | 13mm | 15mm | 15mm |
Working temperature | 0~35℃ | 0~35℃ | 0~35℃ |
Heating Blanket | Designed according to the job size |
MYD Proheat300 Portable Induction Heater accessories
No. | Item | Specifications | Quantity | Remarks |
1.1 | Induction Heater | MYD-20KW | 1 | |
1.2 | MYD-30KW | 1 | ||
1.3 | MYD-40KW | 1 | ||
2.1 | Soft cable coil | 40m | 1 | |
2.2 | 50m | 1 | ||
2.3 | 60m | 1 | ||
2.4 | 70m | 1 | ||
2.5 | Flat blanket coil | 10KW-800*260mm/ 300℃ | 4 | One heater 4coils connected |
2.6 | 20KW-1600*260mm/ 300℃ | 2 | One heater 2coils connected | |
2.7 | 40KW-2400*260mm/ 300℃ | 1 | ||
2.8 | 40KW-3200*260mm/ 300℃ | 1 | ||
2.9 | Fillet blanket coil | 10KW-800*(150+150)mm/ 300℃ | 4 | One heater 4coils connected |
2.10 | 20KW-1600*(150+150)mm/ 300℃ | 2 | One heater 2coils connected | |
2.11 | 40KW-2400*(150+150)mm/ 300℃ | 1 | ||
2.12 | 40KW-3200*(150+150)mm/ 300℃ | 1 | ||
3.1 | Thermalcouple | K 2m | 2 | |
3.2 | K 5m | 2 | ||
3.3 | K 10m | 2 | ||
3.4 | K 15m | 2 | ||
4.1 | Extend cable for coil
| 5m | 1 | |
4.2 | 10m | 1 | ||
4.3 | 15m | 1 | ||
5.1 | Insulation blanket
| 900*600*30mm | 2 | |
5.2 | 1500*600*30mm | 2 | ||
5.3 | 2000*600*30mm | 2 | ||
Re: We will design the coil according to the job shape and size. 2m cable coil left on each side. |
Rapid Preheating:
u Weld Preheat
u Coating Preheat
u Thermal shrinkage
u Thermal Assembly for Turbine, Motor and Shaft Coupling
PRODUCT INTRODUCTION
Induction preheat SMD300 is designed for rapid heating ≤300℃. This SMD series induction heating system are digital heating system. We can set the heating temperature and time. The heating system will fulfil the heating process itself. The main applications are weld joint heating, shrink fitting, heating removing, thermal assembly.
The using fields involve Pipeline construction, bridge construction, boiler and pressure vessel manufacturing, shipbuilding and offshore platform construction, anti corrosion of heat shrinkable pipe, motor manufacturing and maintenance, shaft sleeve removing, ect.
Comparing with the ceramic pads heating system, this Induction heating is the metal in the magnetic field heating itself. Which is direct heating with 3-8 times rapider and 20-80% energy saving than the ceramic heating pads. Especially for rapid heating like motor casing and shaft thermal assembly & disassembly, the induction heating will win the heating speed.
PRODUCT ADVANTAGE
PRODUCT PARAMETERS
Technical Data | |||||
Model | SMD300-20 | SMD300-40 | SMD300-60 | SMD300-80 | SMD300-120 |
Input Voltage | 3 x 380V, 50/60HZ | ||||
Work Voltage | (340 ~ 440 ) V, 3 Phase, 50/60HZ | ||||
Frequency | 3 ~15 KHZ | ||||
Heat Temperature | Max heating temperature 300℃ | ||||
Heat Speed | < 100℃/ Min | ||||
Temperature Control | Yes, Temperature control system build in the machine | ||||
Control System | PID , DSP, PLC, Touch Screen control system | ||||
Brand/Origin | SM Induction / Made in China | ||||
H.S. Code | 851440090 | ||||
Size | / | / | / | / | / |
Weight | / | / | / | / | / |
APPLICATION PICTURES
Plate weld heating, Pipe weld heating, Shipbuilding weld heating, Shrink fitting, Heating removing, Field Joint coating preheating and so on.
