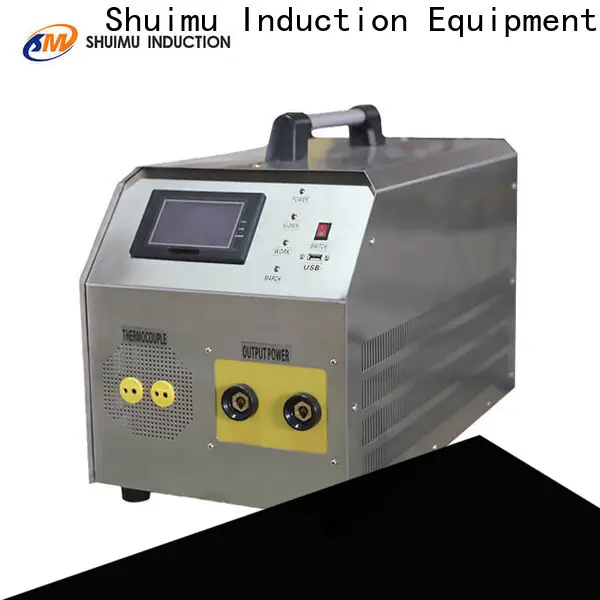

Shuimu high-quality induction forging machine suppliers for business

Input voltage

3*380V, 50/60Hz

3*380V, 50/60Hz

3*380V, 50/60Hz

Input Current

1~30A

1~45A

1~60A

Output Current

0~80A

0~100A

0~150A

Output Power

1~30KW

1~30KW

1~40KW

Output Frequency

2~15KHZ

2~15KHZ

2~15KHZ

Thermocouple

K type

K type

K type

Temperature control

Build in

Build in

Build in

Heating Temperature

Max 300℃

Max 300℃

Max 300℃

Pipeline Diameter or equivalent

50~1000 mm

50~1000 mm

50~1500 mm

Heater Size

650x400x600 mm

650x400x600 mm

650x400x600 mm

Weight

23 kg

26 kg

29 kg

    Induction Heating coil

Length

40-50 M

40-50 M

40-50 M

Diameter

13mm

15mm

15mm

Working temperature

0~35℃

0~35℃

0~35℃

Heating Blanket

Designed according to the job size

1.1

Induction Heater

MYD-20KW

1

1.2

MYD-30KW

1

1.3

MYD-40KW

1

2.1

Soft cable coil

40m

1

2.2

50m

1

2.3

60m

1

2.4

70m

1

2.5

Flat

blanket coil

10KW-800*260mm/ 300℃

4

One heater 4coils connected

2.6

20KW-1600*260mm/ 300℃

2

One heater 2coils connected

2.7

40KW-2400*260mm/ 300℃

1

2.8

40KW-3200*260mm/ 300℃

1

2.9

Fillet

blanket coil

10KW-800*(150+150)mm/ 300℃

4

One heater 4coils connected

2.10

20KW-1600*(150+150)mm/ 300℃

2

One heater 2coils connected

2.11

40KW-2400*(150+150)mm/ 300℃

1

2.12

40KW-3200*(150+150)mm/ 300℃

1

3.1

Thermalcouple

K 2m

2

3.2

K 5m

2

3.3

K 10m

2

3.4

K 15m

2

4.1

Extend cable for coil

5m

1

4.2

10m

1

4.3

15m

1

5.1

Insulation blanket

900*600*30mm

2

5.2

1500*600*30mm

2

5.3

2000*600*30mm

2

Re: We will design the coil according to the job shape and size. 2m cable coil left on each side.
