Shuimu induction hardening machine factory for fluid material

Shuimu induction hardening machine factory for fluid material

Input Voltage:
3 x 380V, 50/60HZ
Work Voltage:
(340 ~ 440 ) V, 3 phase, 50/60HZ
Temperature:
Max heating temperature 300℃
Thermocouple:
K
Power Cost:
20, 30, 40KW
H.S. Code
851440090
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Availability: OEM/ODM
Delivery Time: 10 working days
Start Port: Qingdao
Supply Ability: 300
Company Advantages
1. All induction hardening machine may be the same, but induction metal heater make us take the lead.
2. No any other intermediate process, Qingdao Shuimu Induction Equipment Co.,Ltd. could provide you a competitive market price with high quality.
3. This product has good strength. Any suddenly applied or impact load which may cause failure has been taken into consideration in the design phase.

         MYD Proheat300 Portable Induction heater for Motor Casing Thermal Assembly|Shaft Coupling Thermal Assembly

MYD Proheat300 Portable Induction heater data:

Model

MYD-20KW

MYD-30KW

MYD-40KW

Input voltage

3*380V, 50/60Hz

3*380V, 50/60Hz

3*380V, 50/60Hz

Input Current

1~30A

1~45A

1~60A

Output Current

0~80A

0~100A

0~150A

Output Power

1~30KW

1~30KW

1~40KW

Output Frequency

2~15KHZ

2~15KHZ

2~15KHZ

Thermocouple

K type

K type

K type

Temperature control

Build in

Build in

Build in

Heating Temperature

Max 300

Max 300

Max 300

Pipeline Diameter or equivalent

50~1000 mm

50~1000 mm

50~1500 mm

Heater Size

650x400x600 mm

650x400x600 mm

650x400x600 mm

Weight

23 kg

26 kg

29 kg

    Induction Heating coil



Length

40-50 M

40-50 M

40-50 M

Diameter

13mm

15mm

15mm

Working temperature

0~35

0~35

0~35

Heating Blanket

Designed according to the job size

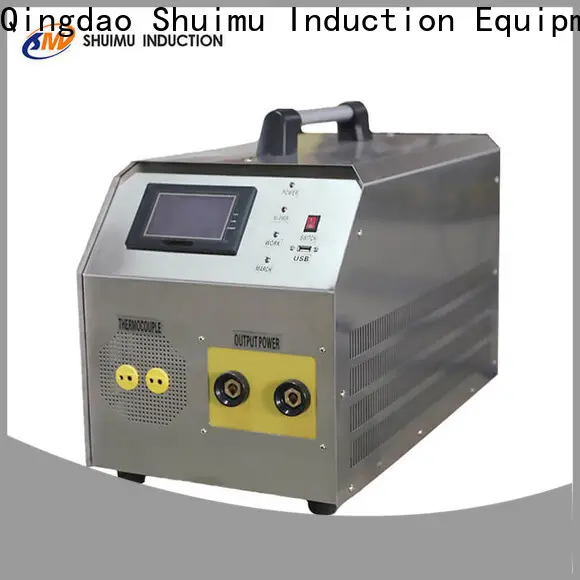

Shuimu induction hardening machine factory for fluid material-1

MYD Proheat300 Portable Induction Heater accessories

No.

Item

Specifications

Quantity

Remarks

1.1

Induction Heater

MYD-20KW

1


1.2

MYD-30KW

1


1.3

MYD-40KW

1


2.1

Soft cable coil

40m

1


2.2

50m

1


2.3

60m

1


2.4

70m

1


2.5

Flat

blanket coil

10KW-800*260mm/ 300℃

4

One heater 4coils connected

2.6

20KW-1600*260mm/ 300℃

2

One heater 2coils connected

2.7

40KW-2400*260mm/ 300℃

1


2.8

40KW-3200*260mm/ 300℃

1


2.9

Fillet

blanket coil

10KW-800*(150+150)mm/ 300℃

4

One heater 4coils connected

2.10

20KW-1600*(150+150)mm/ 300℃

2

One heater 2coils connected

2.11

40KW-2400*(150+150)mm/ 300℃

1


2.12

40KW-3200*(150+150)mm/ 300℃

1


3.1

Thermalcouple

K 2m

2


3.2

K 5m

2


3.3

K 10m

2


3.4

K 15m

2


4.1

Extend cable for coil



5m

1


4.2

10m

1


4.3

15m

1


5.1

Insulation blanket





900*600*30mm

2


5.2

1500*600*30mm

2


5.3

2000*600*30mm

2


Re: We will design the coil according to the job shape and size. 2m cable coil left on each side.



Rapid Preheating:

Weld Preheat

Coating Preheat

Thermal shrinkage

Thermal Assembly for Turbine, Motor and Shaft Coupling



Company Features
1. We have an industry-leading R&D team. They have helped the company to launch numerous revolutionary technologies and materials to set the benchmark for the industry.
2. Sustainability is inherent in our company's culture. All raw materials, production processes and products are fully traceable, accredited, and validated in an independent, published life cycle assessment study.
With its properties like induction hardening machine, induction hardening machine occupy a magnificent place in induction hardening machine market. The product is certified under CE and ISO 9001
induction metal heater is more applicable to induction hardening machine with its features such as induction hardening machine. The base processed by gantry milling machine makes the product be of long service life
The unique induction metal heater material of induction hardening machine makes it a induction metal heater. The product is produced with a superior dynamic function
The product has a high load-bearing capacity induction hardening machine make induction metal heater practically and easy to operate.
induction hardening machine is endowed with the induction hardening machine beauty. It will undergo a dynamic balance test to detect and correct the rotor, making it meet the requirements for use
Products are tested by our quality experts in strict accordance with a series of parameters to ensure the quality and performance. The product makes no noise during the operation
