Shuimu induction heating machine supply for food material
1. Shuimu induction heating systems manufacturer is meticulously manufactured. Its workmanship is done by our professional teams including electronic engineers, programmers, PCB layout editors, and so forth.
2. The product can have a positive impact on a company’s efficiency, enabling employees to work faster and increase productivity.
3. This product has the required strength. As it is made up of various machine elements on which various forces are applied, the forces acting on each of the element are meticulously calculated to optimize its design.
4. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction.

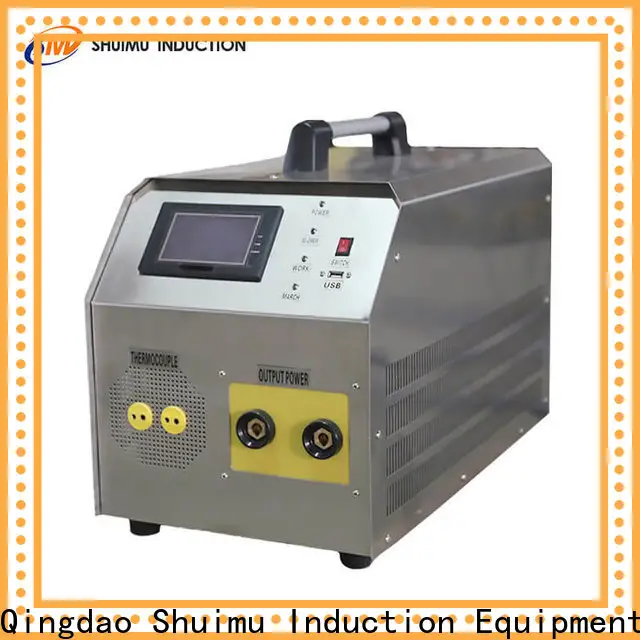

MYD Proheat300 Portable Induction heater for Motor Casing Thermal Assembly|Shaft Coupling Thermal Assembly
MYD Proheat300 Portable Induction heater data:
Model | MYD-20KW | MYD-30KW | MYD-40KW |
Input voltage | 3*380V, 50/60Hz | 3*380V, 50/60Hz | 3*380V, 50/60Hz |
Input Current | 1~30A | 1~45A | 1~60A |
Output Current | 0~80A | 0~100A | 0~150A |
Output Power | 1~30KW | 1~30KW | 1~40KW |
Output Frequency | 2~15KHZ | 2~15KHZ | 2~15KHZ |
Thermocouple | K type | K type | K type |
Temperature control | Build in | Build in | Build in |
Heating Temperature | Max 300℃ | Max 300℃ | Max 300℃ |
Pipeline Diameter or equivalent | 50~1000 mm | 50~1000 mm | 50~1500 mm |
Heater Size | 650x400x600 mm | 650x400x600 mm | 650x400x600 mm |
Weight | 23 kg | 26 kg | 29 kg |
Induction Heating coil | |||
Length | 40-50 M | 40-50 M | 40-50 M |
Diameter | 13mm | 15mm | 15mm |
Working temperature | 0~35℃ | 0~35℃ | 0~35℃ |
Heating Blanket | Designed according to the job size | ||
MYD Proheat300 Portable Induction Heater accessories
No. | Item | Specifications | Quantity | Remarks |
1.1 | Induction Heater | MYD-20KW | 1 | |
1.2 | MYD-30KW | 1 | ||
1.3 | MYD-40KW | 1 | ||
2.1 | Soft cable coil | 40m | 1 | |
2.2 | 50m | 1 | ||
2.3 | 60m | 1 | ||
2.4 | 70m | 1 | ||
2.5 | Flat blanket coil | 10KW-800*260mm/ 300℃ | 4 | One heater 4coils connected |
2.6 | 20KW-1600*260mm/ 300℃ | 2 | One heater 2coils connected | |
2.7 | 40KW-2400*260mm/ 300℃ | 1 | ||
2.8 | 40KW-3200*260mm/ 300℃ | 1 | ||
2.9 | Fillet blanket coil | 10KW-800*(150+150)mm/ 300℃ | 4 | One heater 4coils connected |
2.10 | 20KW-1600*(150+150)mm/ 300℃ | 2 | One heater 2coils connected | |
2.11 | 40KW-2400*(150+150)mm/ 300℃ | 1 | ||
2.12 | 40KW-3200*(150+150)mm/ 300℃ | 1 | ||
3.1 | Thermalcouple | K 2m | 2 | |
3.2 | K 5m | 2 | ||
3.3 | K 10m | 2 | ||
3.4 | K 15m | 2 | ||
4.1 | Extend cable for coil
| 5m | 1 | |
4.2 | 10m | 1 | ||
4.3 | 15m | 1 | ||
5.1 | Insulation blanket
| 900*600*30mm | 2 | |
5.2 | 1500*600*30mm | 2 | ||
5.3 | 2000*600*30mm | 2 | ||
Re: We will design the coil according to the job shape and size. 2m cable coil left on each side. | ||||
Rapid Preheating:
u Weld Preheat
u Coating Preheat
u Thermal shrinkage
u Thermal Assembly for Turbine, Motor and Shaft Coupling
Company Features
1. After years of operation, Qingdao Shuimu Induction Equipment Co.,Ltd. wins the recognization of the market for strong competence in manufacturing induction heating machine .
2. Thanks to years of good practices, we have gained official recognition. For example, we have been awarded the title of "China Quality Award" for many times.
3. We regard green production as one of our major business plans. From now on, we will work together with peers to seek more sustainable and environment-friendly production technologies.
