wholesale induction brazing machine supply for business

Company Advantages
1. All the raw materials of Shuimu industrial induction heater are in line with international standards.
2. With a function to run 24 hours a day, it enables the manufacturers to conduct production with a reduced workforce thanks to its high efficiency and automation.
3. We make use of guaranteed raw material that is procured for trusted vendors to guarantee the quality of this product.
4. Shuimu conducts strict quality management system and the quality of this product is assured.
5. We set a higher and higher standard for the quality of this product.

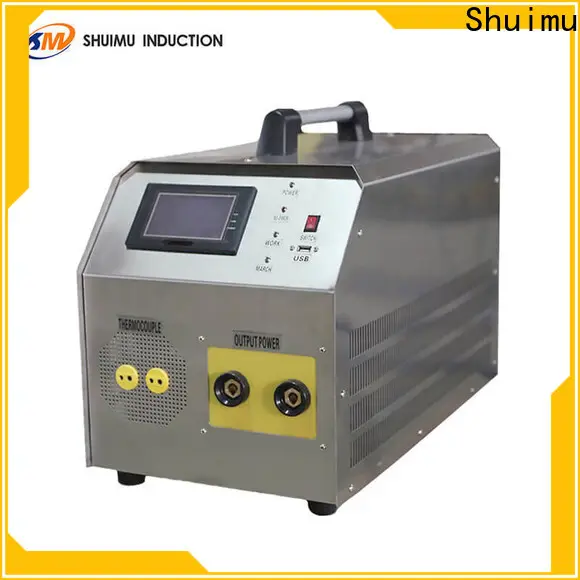

MYD Proheat300 Portable Induction heater for Motor Casing Thermal Assembly|Shaft Coupling Thermal Assembly

MYD Proheat300 Portable Induction heater data:

Model	MYD-20KW	MYD-30KW	MYD-40KW
Input voltage	3*380V, 50/60Hz	3*380V, 50/60Hz	3*380V, 50/60Hz
Input Current	1~30A	1~45A	1~60A
Output Current	0~80A	0~100A	0~150A
Output Power	1~30KW	1~30KW	1~40KW
Output Frequency	2~15KHZ	2~15KHZ	2~15KHZ
Thermocouple	K type	K type	K type
Temperature control	Build in	Build in	Build in
Heating Temperature	Max 300℃	Max 300℃	Max 300℃
Pipeline Diameter or equivalent	50~1000 mm	50~1000 mm	50~1500 mm
Heater Size	650x400x600 mm	650x400x600 mm	650x400x600 mm
Weight	23 kg	26 kg	29 kg
Induction Heating coil
Length	40-50 M	40-50 M	40-50 M
Diameter	13mm	15mm	15mm
Working temperature	0~35℃	0~35℃	0~35℃
Heating Blanket	Designed according to the job size

MYD Proheat300 Portable Induction Heater accessories

No.	Item	Specifications	Quantity	Remarks
1.1	Induction Heater	MYD-20KW	1
1.2		MYD-30KW	1
1.3		MYD-40KW	1
2.1	Soft cable coil	40m	1
2.2		50m	1
2.3		60m	1
2.4		70m	1
2.5	Flat blanket coil	10KW-800*260mm/ 300℃	4	One heater 4coils connected
2.6		20KW-1600*260mm/ 300℃	2	One heater 2coils connected
2.7		40KW-2400*260mm/ 300℃	1
2.8		40KW-3200*260mm/ 300℃	1
2.9	Fillet blanket coil	10KW-800*(150+150)mm/ 300℃	4	One heater 4coils connected
2.10		20KW-1600*(150+150)mm/ 300℃	2	One heater 2coils connected
2.11		40KW-2400*(150+150)mm/ 300℃	1
2.12		40KW-3200*(150+150)mm/ 300℃	1
3.1	Thermalcouple	K 2m	2
3.2		K 5m	2
3.3		K 10m	2
3.4		K 15m	2
4.1	Extend cable for coil	5m	1
4.2		10m	1
4.3		15m	1
5.1	Insulation blanket	90060030mm	2
5.2		150060030mm	2
5.3		200060030mm	2
Re: We will design the coil according to the job shape and size. 2m cable coil left on each side.

Rapid Preheating:

u Weld Preheat

u Coating Preheat

u Thermal shrinkage

u Thermal Assembly for Turbine, Motor and Shaft Coupling

Company Features
1. By introducing advanced production lines, Qingdao Shuimu Induction Equipment Co.,Ltd. mainly manufacturing high quality induction brazing machine . With a sense of responsibility, induction heating equipment of Shuimu is of good quality.
2. Customers speak highly of our induction hardening machine with advanced quality and high performance.
3. induction heating machine has mature product structure and production process. Constant excellence and constant quality assurance are of great importance to Shuimu. Get quote!
