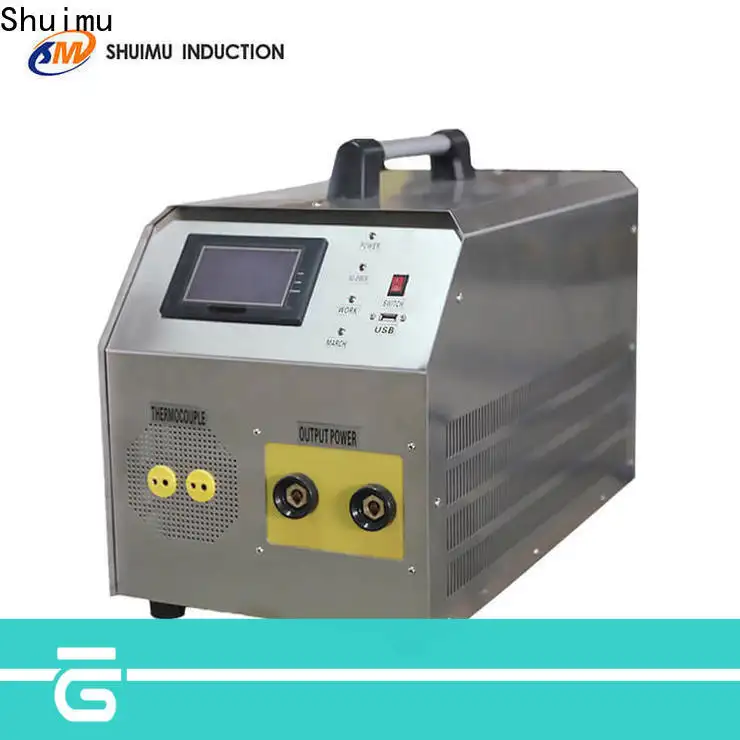

MYD Proheat300 Portable Induction heater for Motor Casing Thermal Assembly|Shaft Coupling Thermal Assembly

MYD Proheat300 Portable Induction heater data:

Model	MYD-20KW	MYD-30KW	MYD-40KW
Input voltage	3*380V, 50/60Hz	3*380V, 50/60Hz	3*380V, 50/60Hz
Input Current	1~30A	1~45A	1~60A
Output Current	0~80A	0~100A	0~150A
Output Power	1~30KW	1~30KW	1~40KW
Output Frequency	2~15KHZ	2~15KHZ	2~15KHZ
Thermocouple	K type	K type	K type
Temperature control	Build in	Build in	Build in
Heating Temperature	Max 300℃	Max 300℃	Max 300℃
Pipeline Diameter or equivalent	50~1000 mm	50~1000 mm	50~1500 mm
Heater Size	650x400x600 mm	650x400x600 mm	650x400x600 mm
Weight	23 kg	26 kg	29 kg
Induction Heating coil
Length	40-50 M	40-50 M	40-50 M
Diameter	13mm	15mm	15mm
Working temperature	0~35℃	0~35℃	0~35℃
Heating Blanket	Designed according to the job size

MYD Proheat300 Portable Induction Heater accessories

No.	Item	Specifications	Quantity	Remarks
1.1	Induction Heater	MYD-20KW	1
1.2		MYD-30KW	1
1.3		MYD-40KW	1
2.1	Soft cable coil	40m	1
2.2		50m	1
2.3		60m	1
2.4		70m	1
2.5	Flat blanket coil	10KW-800*260mm/ 300℃	4	One heater 4coils connected
2.6		20KW-1600*260mm/ 300℃	2	One heater 2coils connected
2.7		40KW-2400*260mm/ 300℃	1
2.8		40KW-3200*260mm/ 300℃	1
2.9	Fillet blanket coil	10KW-800*(150+150)mm/ 300℃	4	One heater 4coils connected
2.10		20KW-1600*(150+150)mm/ 300℃	2	One heater 2coils connected
2.11		40KW-2400*(150+150)mm/ 300℃	1
2.12		40KW-3200*(150+150)mm/ 300℃	1
3.1	Thermalcouple	K 2m	2
3.2		K 5m	2
3.3		K 10m	2
3.4		K 15m	2
4.1	Extend cable for coil	5m	1
4.2		10m	1
4.3		15m	1
5.1	Insulation blanket	90060030mm	2
5.2		150060030mm	2
5.3		200060030mm	2
Re: We will design the coil according to the job shape and size. 2m cable coil left on each side.

Rapid Preheating:

u Weld Preheat

u Coating Preheat

u Thermal shrinkage

u Thermal Assembly for Turbine, Motor and Shaft Coupling
